Khwanpitcha Sales and Services,
Appointed by Technoplan Engineering SA to supply PET Blower machine part.
Spares parts for PET blowing machines:
Swiss quality alternatives for your blowers.
Swiss quality alternatives for your blowers.
Technoplan Engineering is a solid alternative to your spare parts supply. We study your list of requirements and send you a dedicated offer in less than 24 hours. We keep available in stock all the parts that require frequent replacement for you to be quickly delivered and at competitive prices. With our strong organization, we give you valid support to solve any kind of problem you may face, in a short amount of time. This helps you maintain the performance you strive for. The parts we supply are 1-per-1 replacements, that will suit perfectly to your machine. Swiss quality part means high-quality achieved and long-lasting products.
Your satisfaction is our priority.
Technoplan
Technoplan : is a Swiss company based in Geneva, Switzerland.
We are specialized in the PET bottle industry.
28 years experience in industrial machine design
19 years with Air Recycling system (ARS) and ARS +
6 years with ceramic TOEO

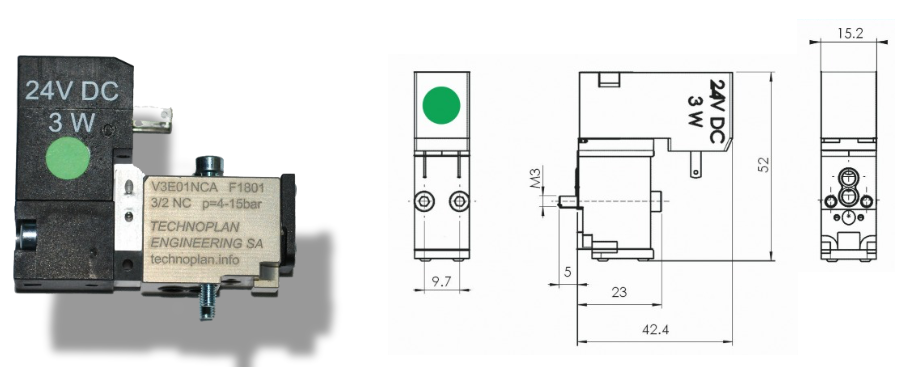

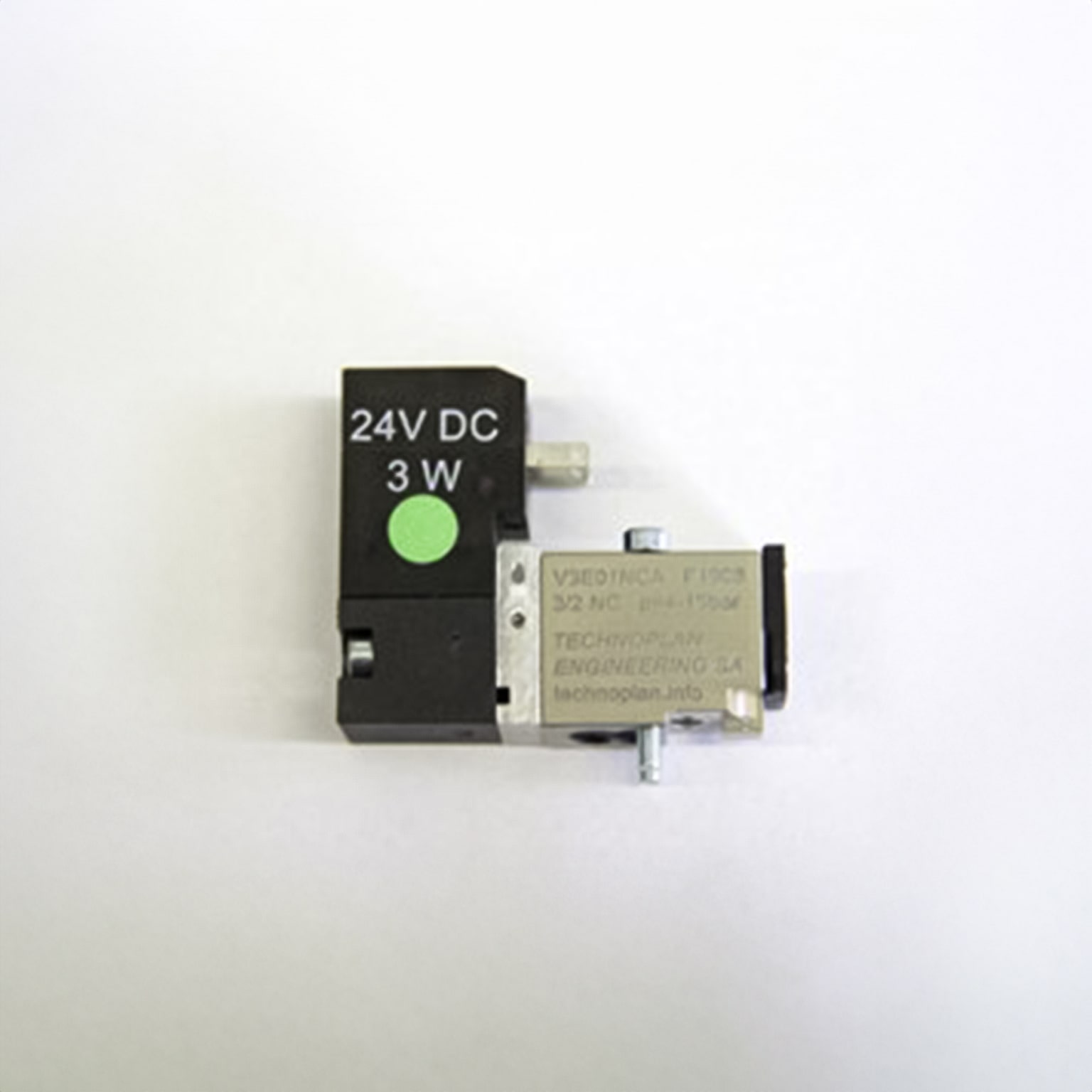

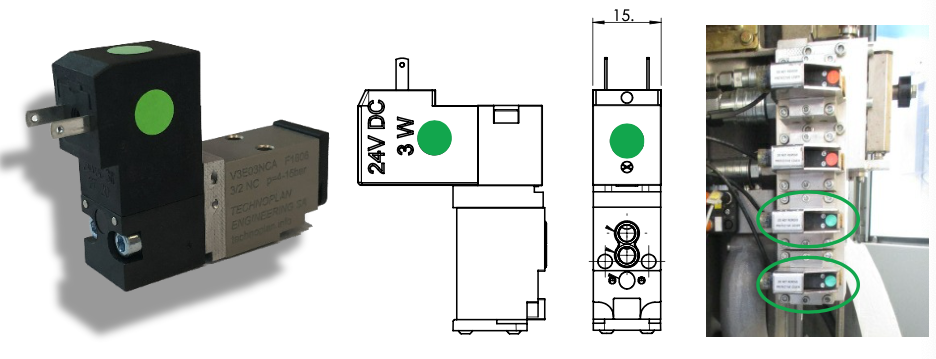

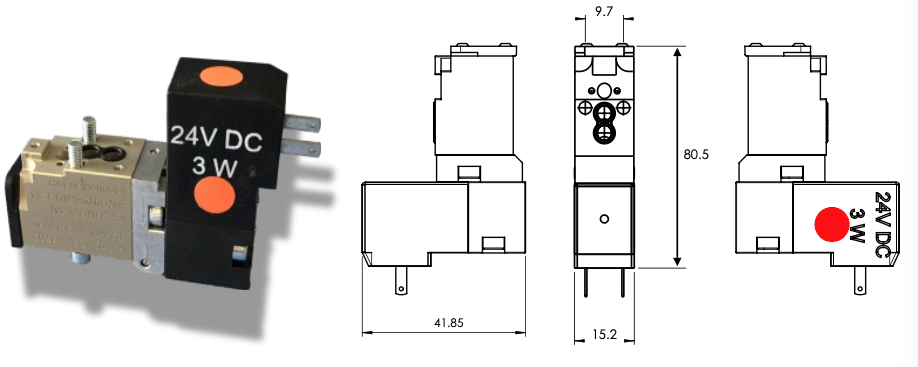

V3E01NCA, 100% replacement for : VSP 152129 / 59.70062
KHS : 50377685
Krones : included in kit X-NOR-122-016 Sipa : 80051760

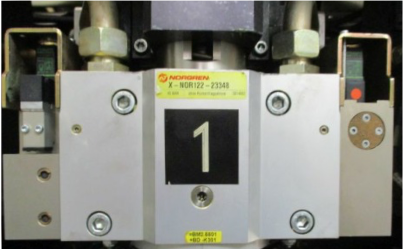

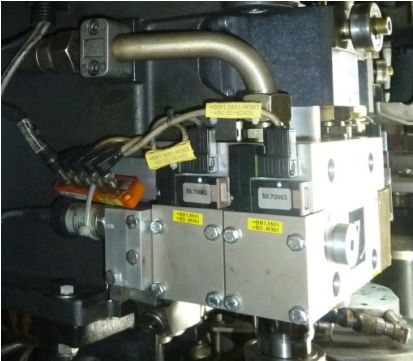

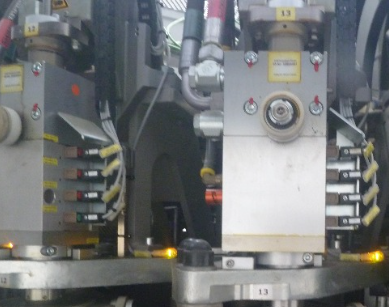

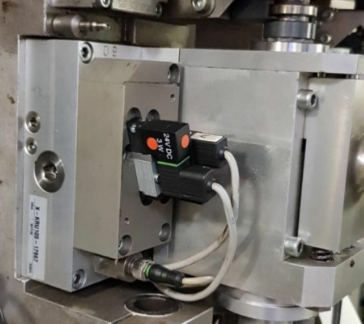

Example of Krones C2 (2006-2014) block valve

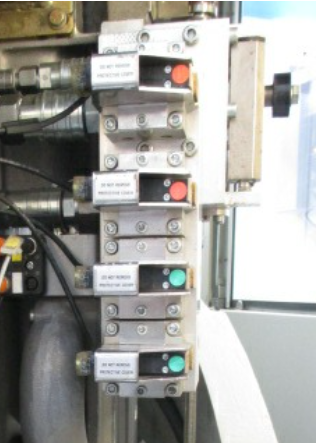

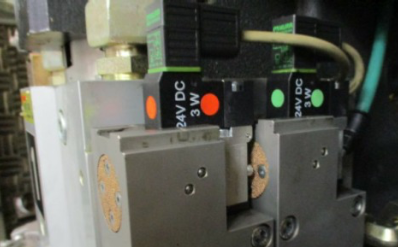

Example of pilots V3E01NOA on Blomax IIIC

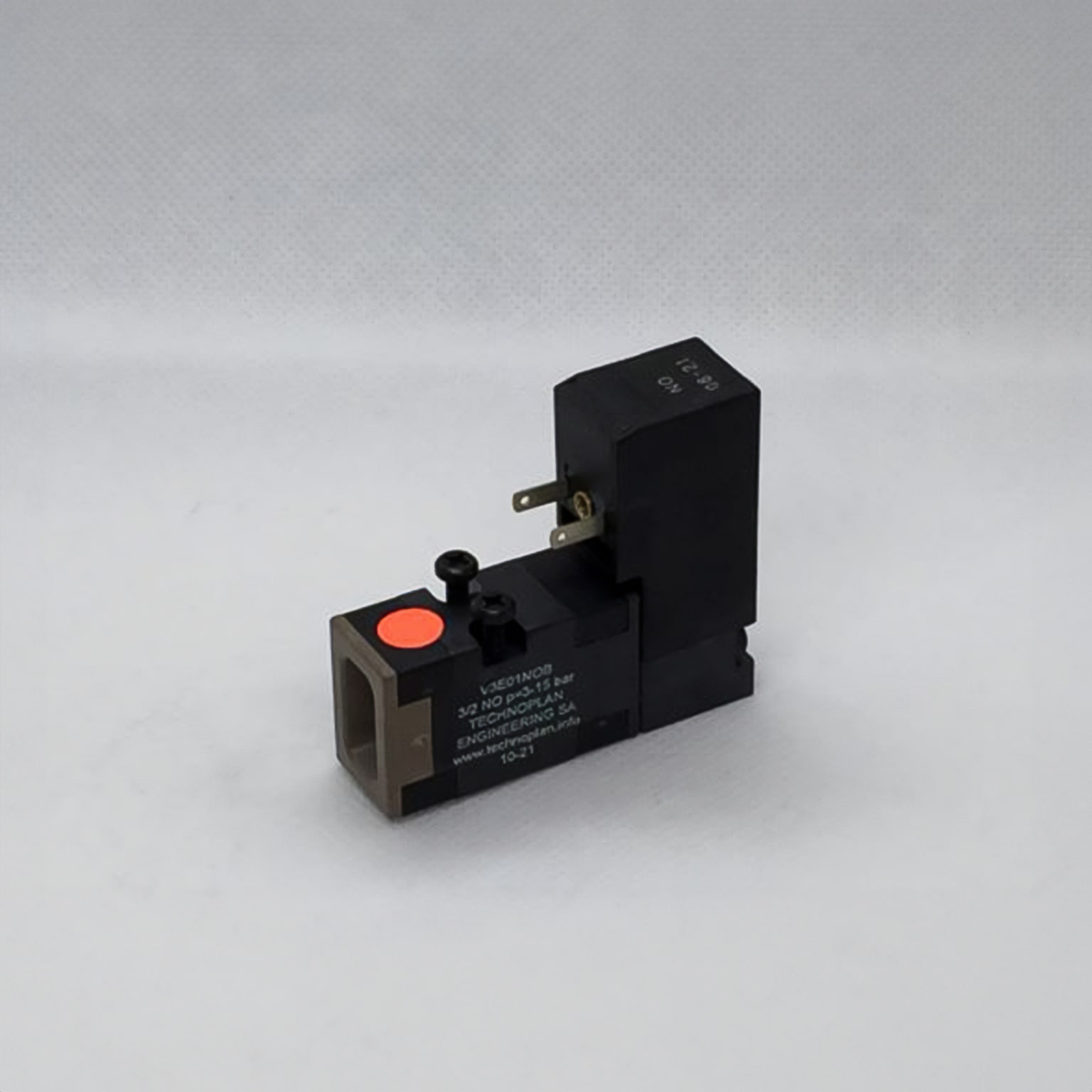

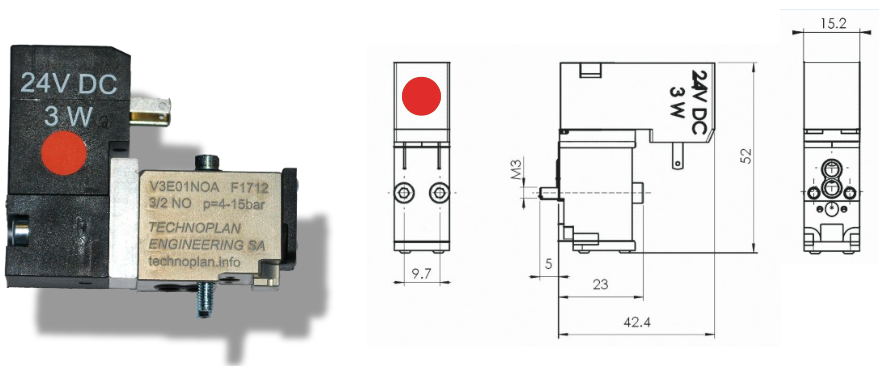

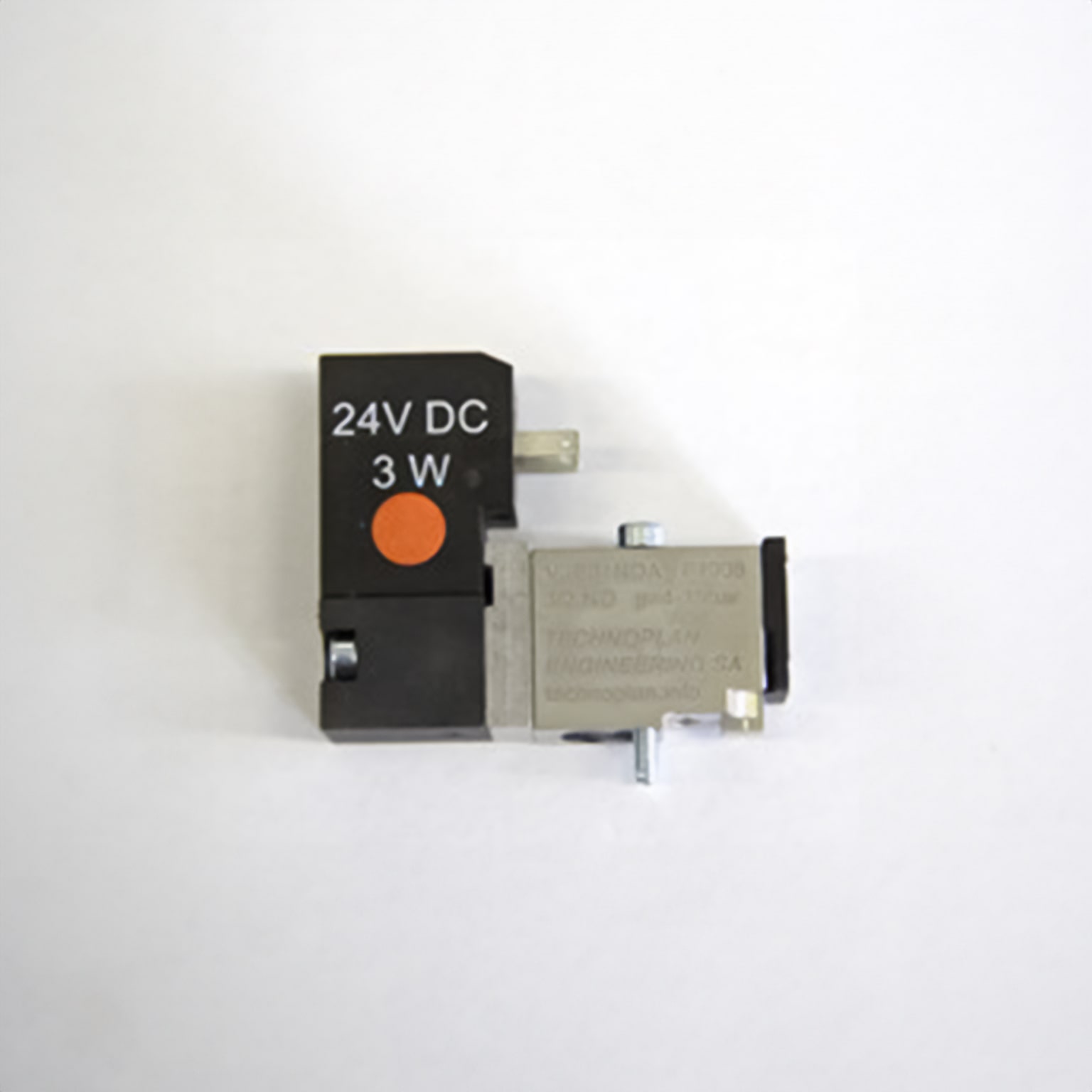

V3E01NOA, 100% replacement for : VSP 152130 / 59.70063
KHS : 50377686
Krones : included in kit X-NOR-122-016 Sipa : 80088754
Example of Krones C3 block valve
Example of Blomax IV block valve
1. Description: Pilot valve for EXH1 or EXH2. Replace original part VSP152129 / 59.70062. Sipa code : 80088754 One-to-one replacement.
3. Included
- Valve
- Screws, seals
4. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
2. Technical Detail:
1. Description: Pilot valve for P1 or P2. Replace original part VSP152130 / 59.70063. One-to-one replacement.
3. Included
- Valve
- Screws, seals
4. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
2. Technical Detail:
Pilot / solenoid valves guaranteed 30 million cycles / 20’000 hrs

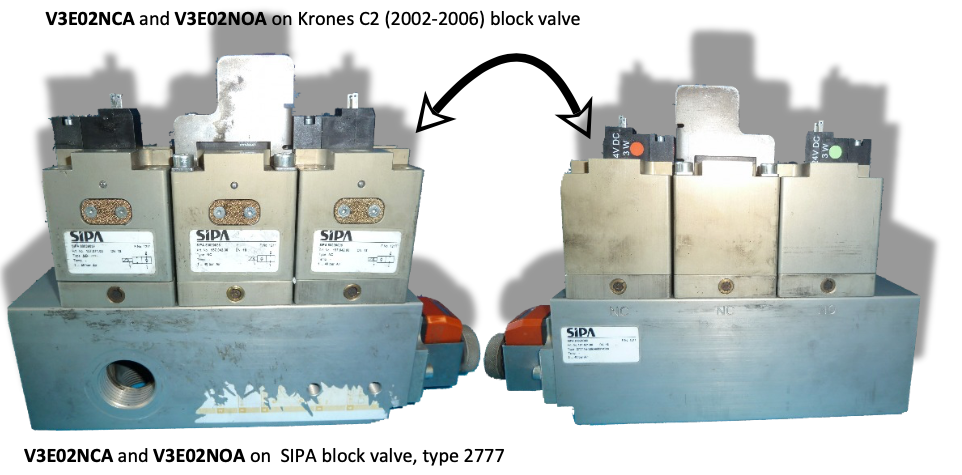

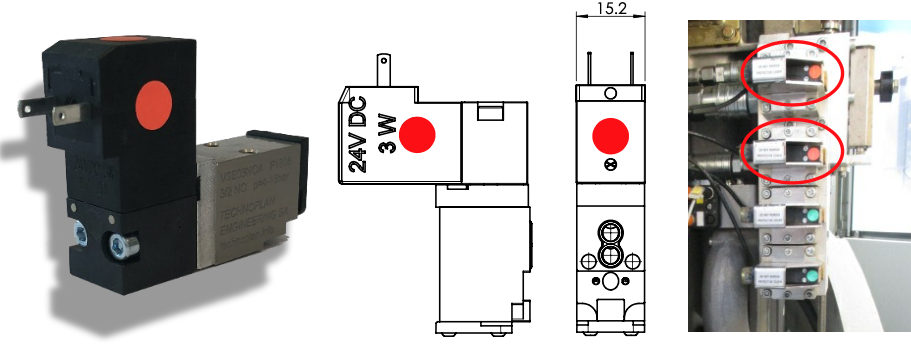

V3E02NCA, 100% replacement for : 59.70044, 59.70061
Krones : 0-900-06-171-0
Sipa : 80029859 – 150.892.01

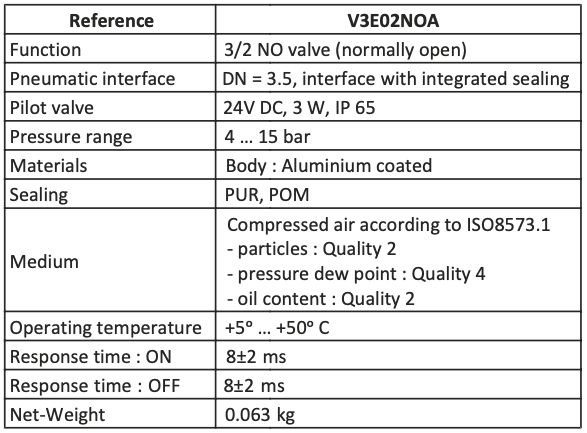

V3E02NOA, 100% replacement for : 59.700 45 and 59.700 60,
Krones : X-NOR122-021 , 0-900-06-160-8 Sipa : 80029858 – 150.924.01
1. Description: Pilot valve for EXH1 or EXH2. Replace original part 59.70061. One-to-one replacement.
3. Included
- Valve
- Screws, seals
4. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
2. Technical Detail:
1. Description: Pilot valve for P1 or P2. Replace original part 59.70060. One-to-one replacement.
3. Included
- Valve
- Screws, seals
4. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
2. Technical Detail:
Pilot / solenoid valves guaranteed 30 million cycles / 20’000 hrs

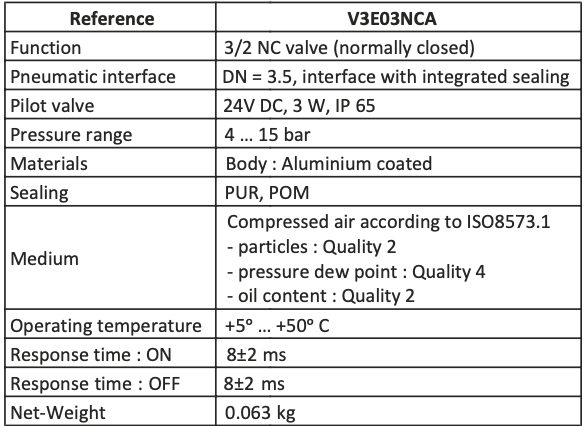

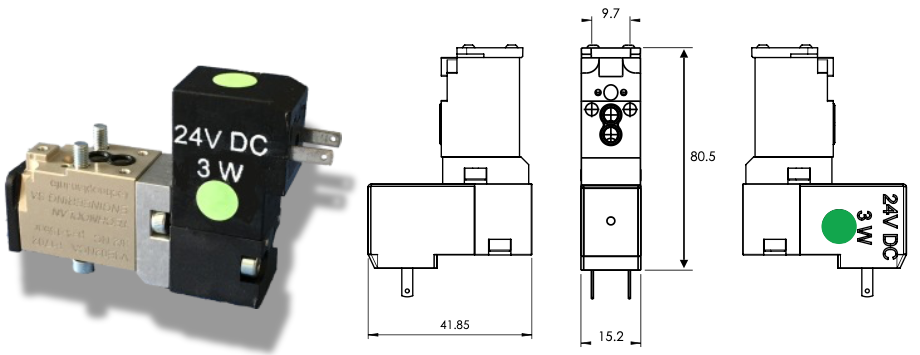

V3E03NCA, 100% replacement for : 59.70051
KHS Blomax : 50363505

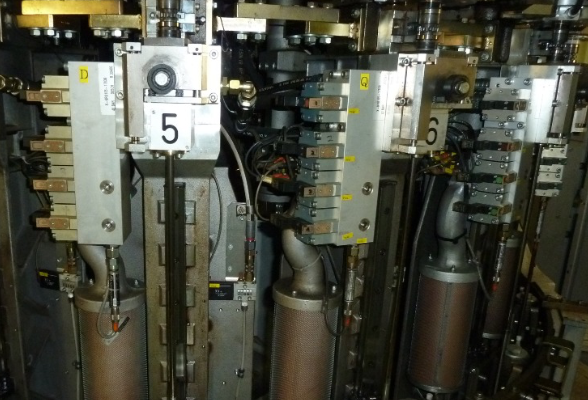

BLOMAX IIIM (2003-2006) block valve
V3E03NOA, 100% replacement for : 59.70052
KHS Blomax : 50363507
1. Description: Pilot valve for EXH1 or EXH2. Replace original part 50363505
One-to-one replacement.
3. Included
- Valve
- Screws, seals
4. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
2. Technical Detail:
1. Description: Pilot valve for P1 or P2. Replace original part 50363507
One-to-one replacement.
3. Included
- Valve
- Screws, seals
4. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
2. Technical Detail:

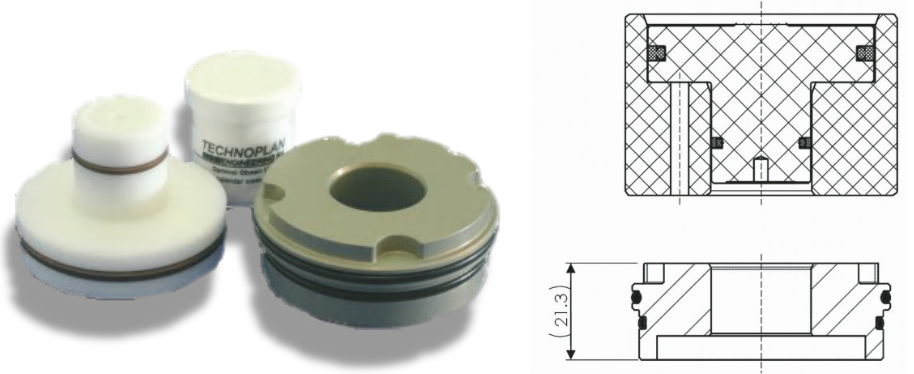

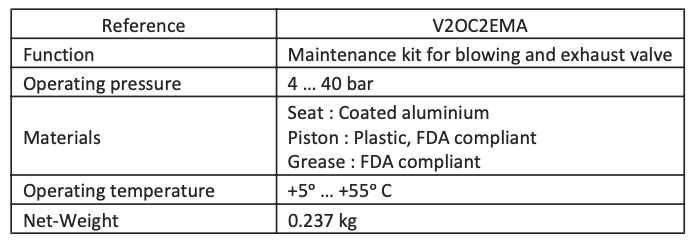

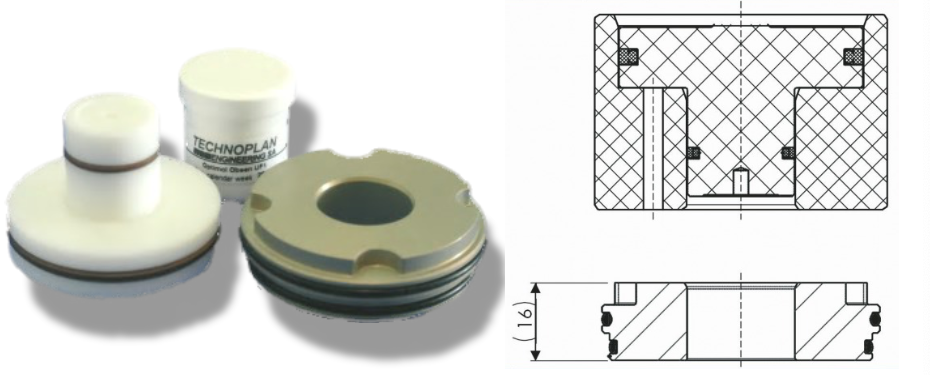

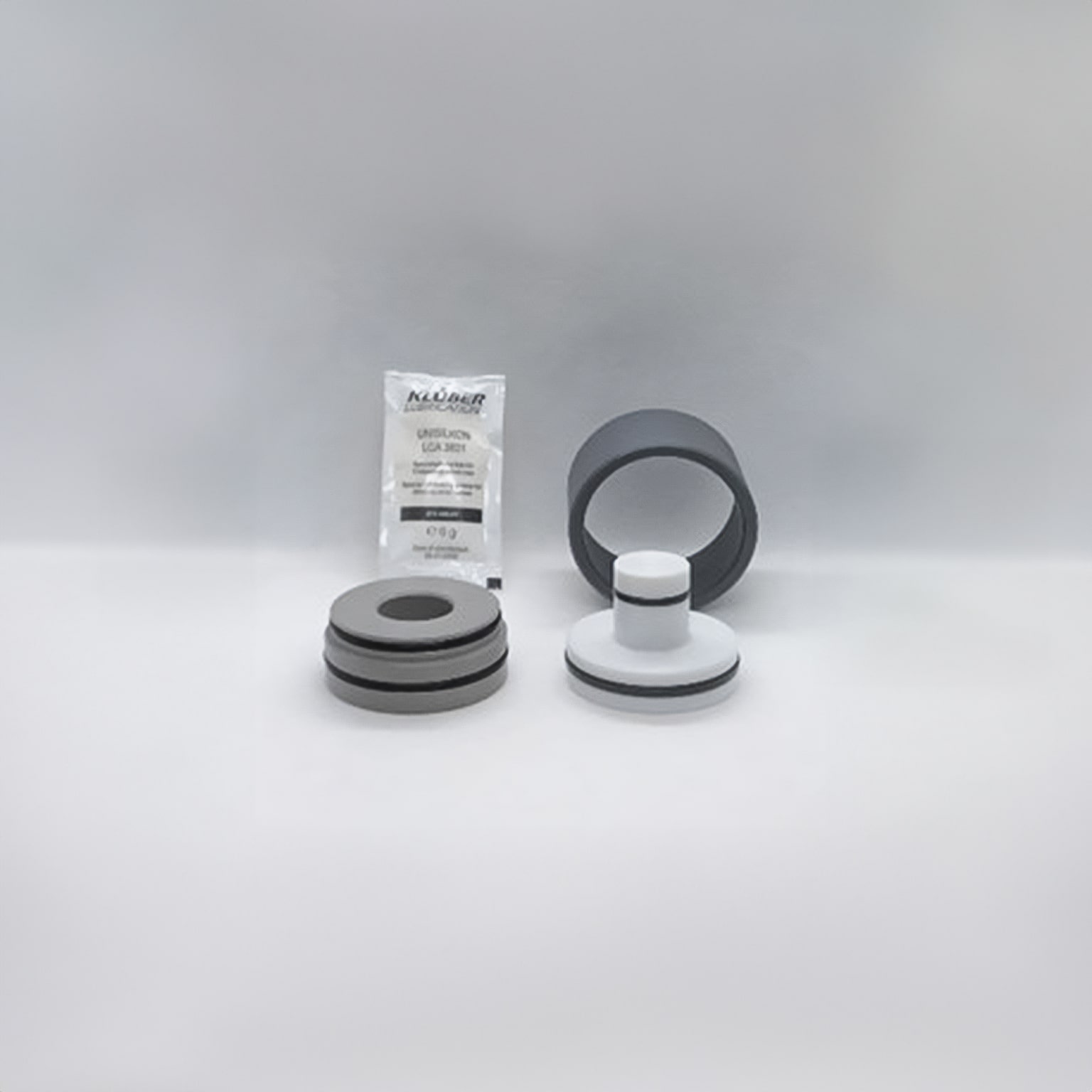

1. Description: Maintenance kit for blowing and exhaust valve. Replace original part no X-NOR122-015. One-to-one replacement.
2. Included
- Piston
- Seat
- Grease
3. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
2. Technical Detail:

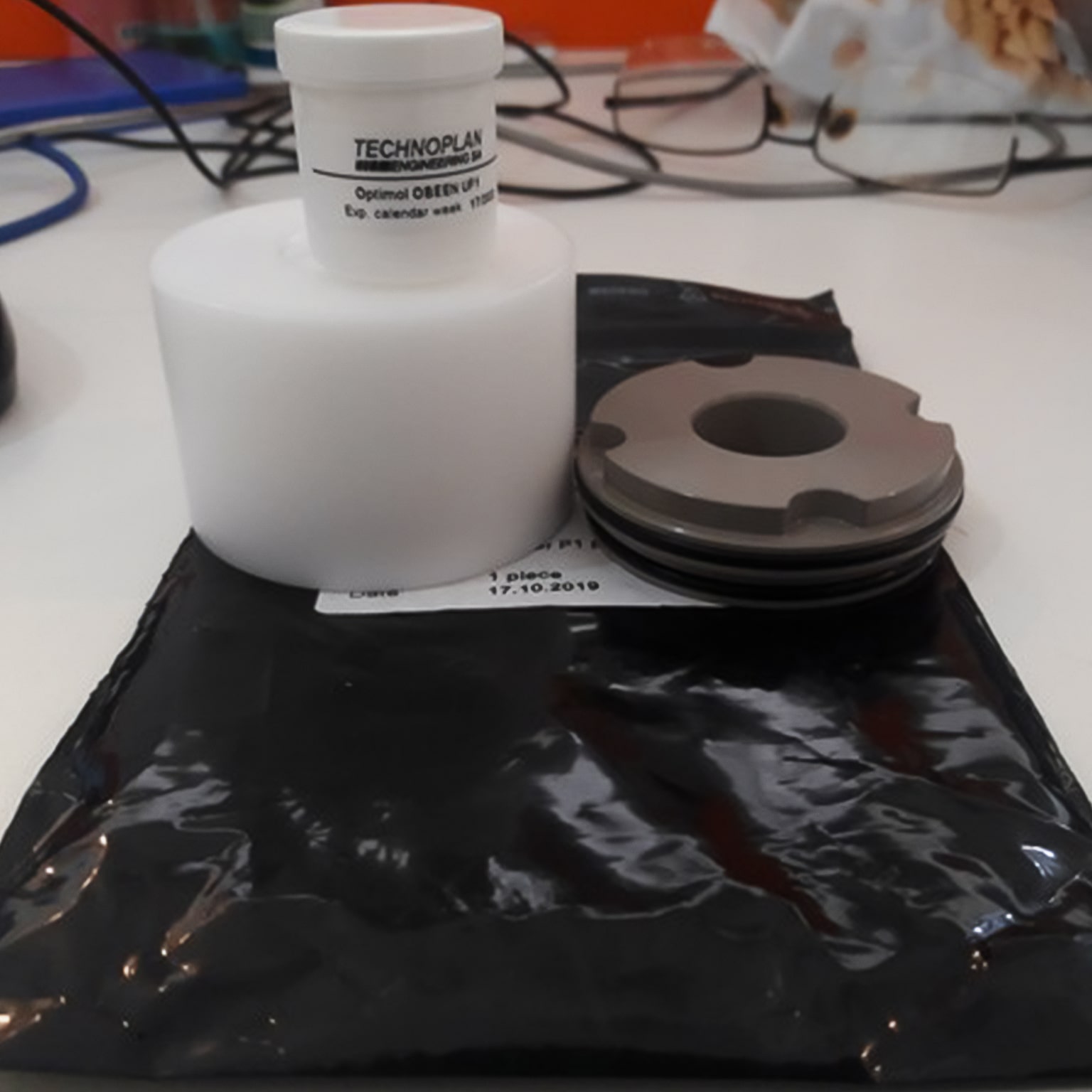

1. Description: Maintenance kit for blowing and exhaust valve. Replace original part no X-NOR122-014. One-to-one replacement.
2. Included
- Piston
- Seat
- Grease
3. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
2. Technical Detail:

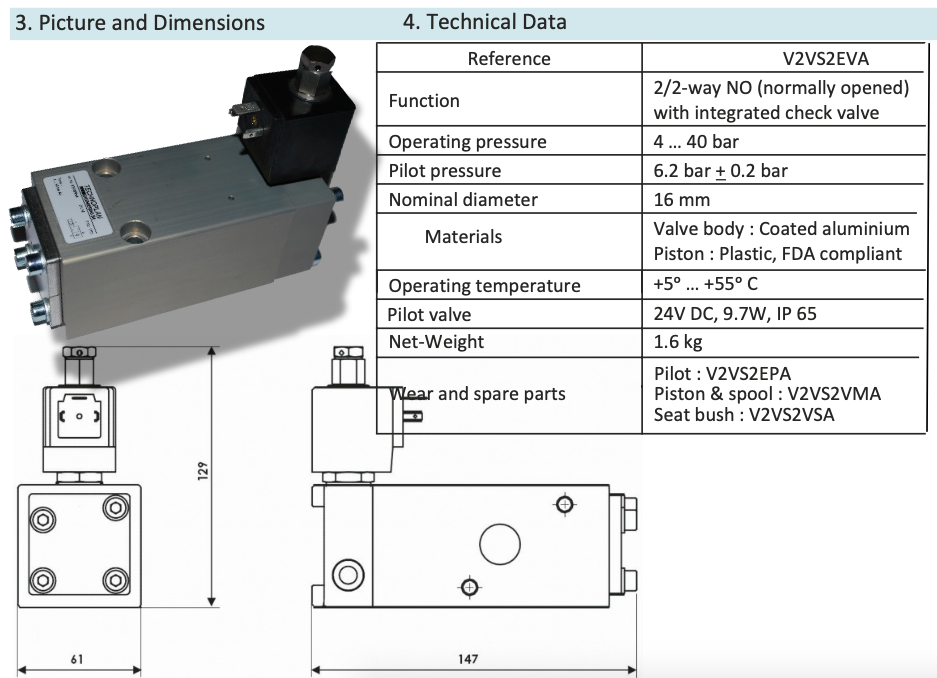

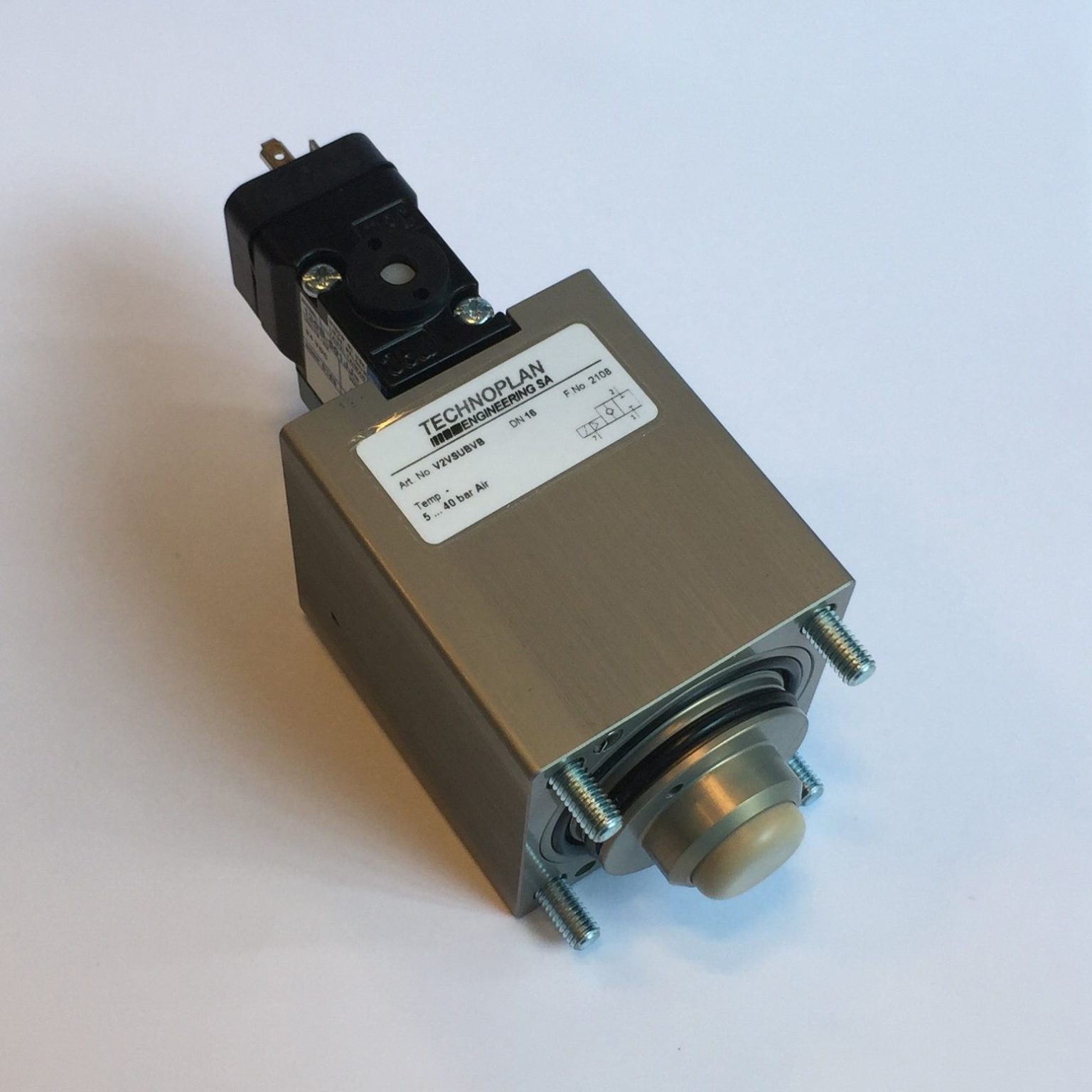

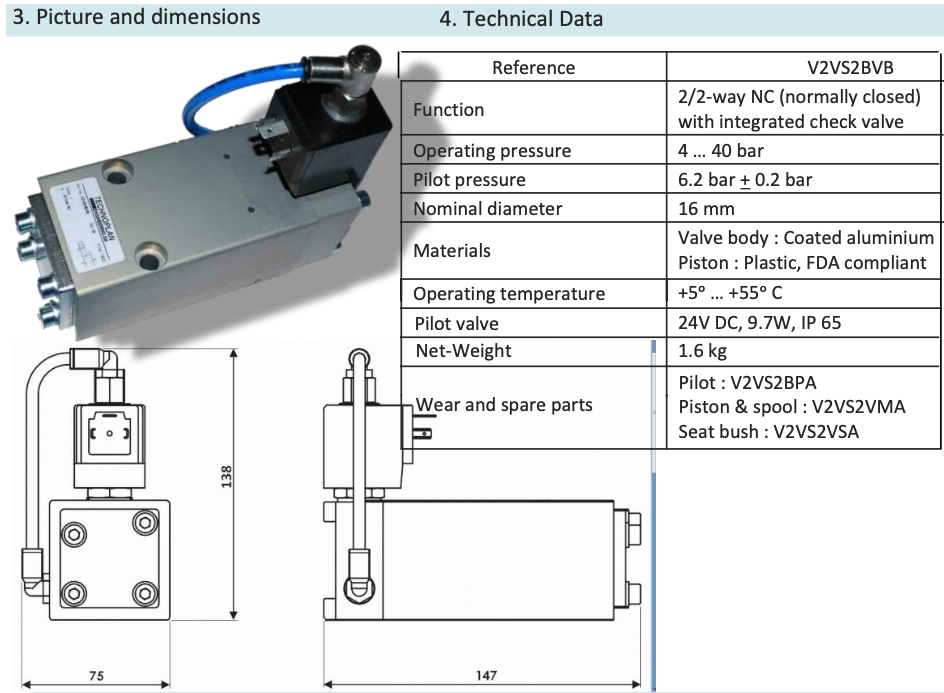

1. Description: This robust valve is equipped with new valve technology and has been designed to replace the original Sidel Serie 2 blowing valve. Identical pneumatic and electrical interface allows fast and easy mounting on existing valve base plate on blower.
One-to-one replacement for Sidel part n° 00000114583/A.
2. Advantages:
-
Excellent repeatability : accurate and constant valve switching time over life time of valve.
- Low leackage : < 20 Nl/h compared to Sidel valve with > 200 Nl/h.
- Longlife (25 million cycles) and considerably reduced maintenance effort.
1. Description: This robust valve is equipped with new valve technology and has been designed to replace the original Sidel Serie 2 blowing valve. Identical pneumatic and electrical interface allows fast and easy mounting on existing valve base plate on blower.
One-to-one replacement for Sidel part n° 00000114585/A.
2. Advantages:
-
Excellent repeatability : accurate and constant valve switching time over life time of valve.
- Low leackage : < 20 Nl/h compared to Sidel valve with > 200 Nl/h.
- Longlife (25 million cycles) and considerably reduced maintenance effort.

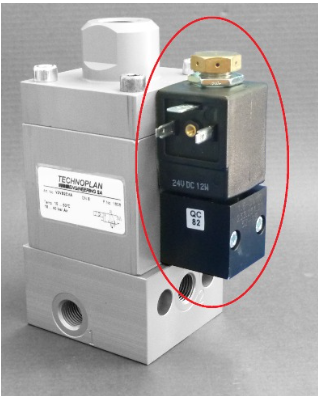

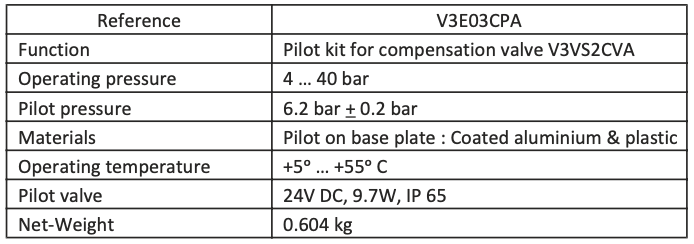

1. Description: Pilot kit for compensation valve V3VS2CVA and original valve Type 2636. One-to-one replacement.
2. Included
-
Pilot mounted on base plate
- Screws, seals
3. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
4
. Technical Detail:

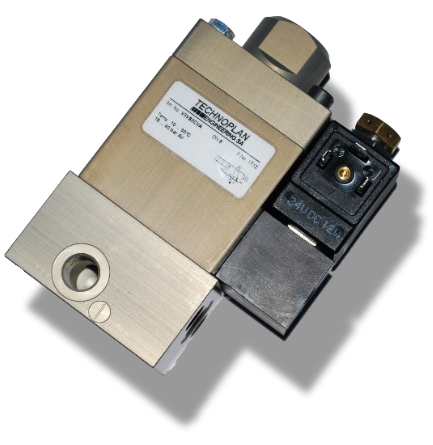

1. Description: Pancake/Compensation valve type 2636 for Sidel Serie 2 and Universal first generation. Replacement 1-to-1. Original Sidel valve n°011 234 297 01.
2. New construction:
– Synthetic piston formed at high temperature. Proven technology
– Lifetime warranted : 25 Mo cycles / 3 years
– 1-to-1 replacement for the original valves from 1998 to 2006
– Pilot and maintenance kit available
– Working pressure : 18…40 bar
– Electrical data : 24 V DC / 12 W
– Very short response time constant during all the lifetime of the valve : Ton=16ms±1.5ms/Toff=10ms± 4.0ms
3. Features:
– Extended lifetime by reducing the number of components – High reliability throughout the lifetime of the valve
– Less frictions thanks to improved dynamic seals
– Pilot with high repeatability and reproducibility
– All synthetic moving parts are guaranteed FDA compliant – Easy and fast replacement of the spare parts
– Maintenance kits available
5. Earnings :
– Reduction in handling costs
– Increased productivity
– Less attrition on components
– Improving the quality of the bottle production
4.

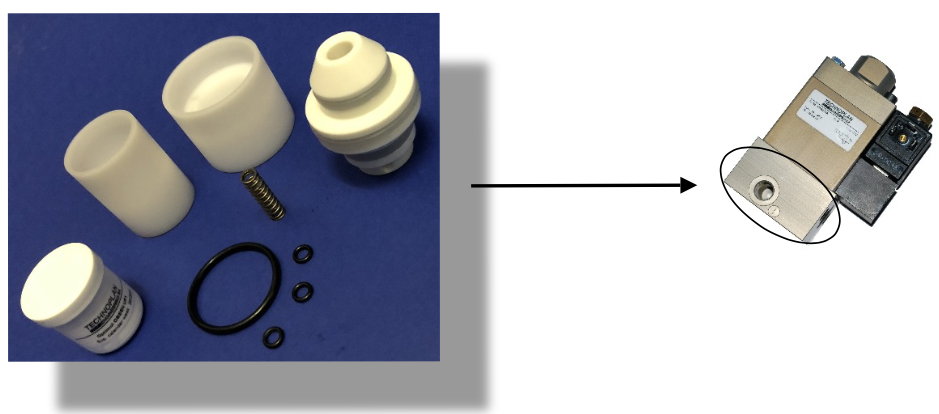

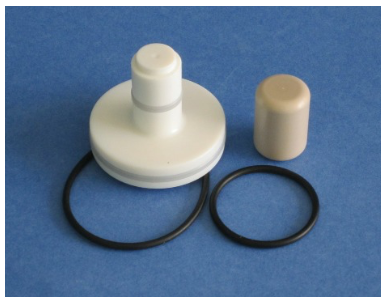

1. Description: Piston kit for compensation valve on Sidel universal. One-to-one replacement.
2. Included
- Piston
- Spring
- 1x big O-ring with 3x small O-rings
3. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
4. Technical Detail:

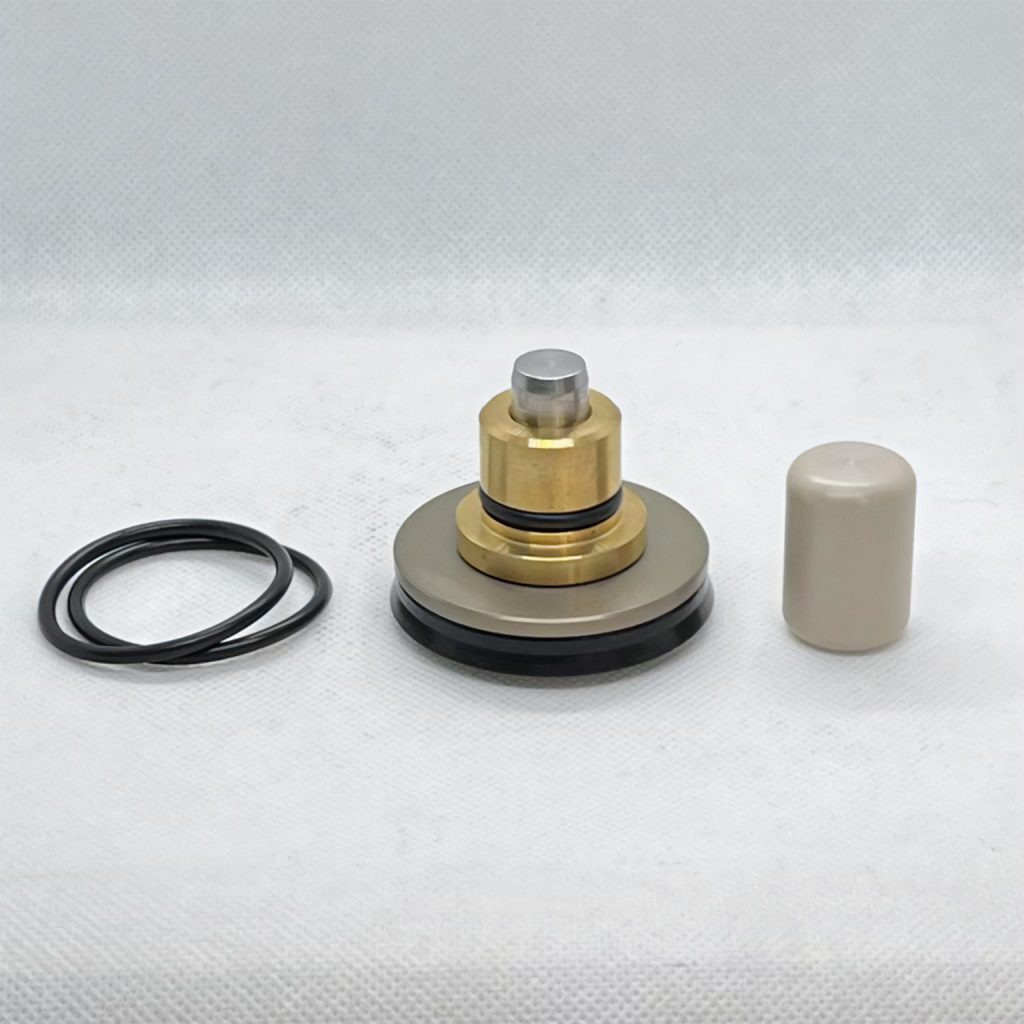

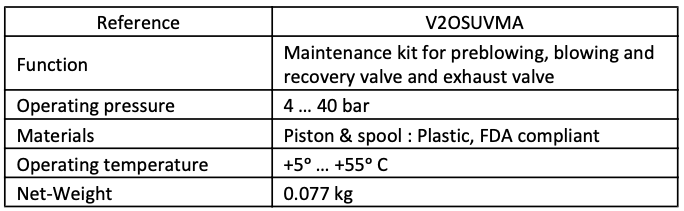

1. Description: Maintenance kit for preblowing, blowing and recovery valve and exhaust valve. Replace original part no 00000141762. One-to-one replacement.
2. Included
- Piston & Spool
- O-ring
3. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
4. Technical Detail:

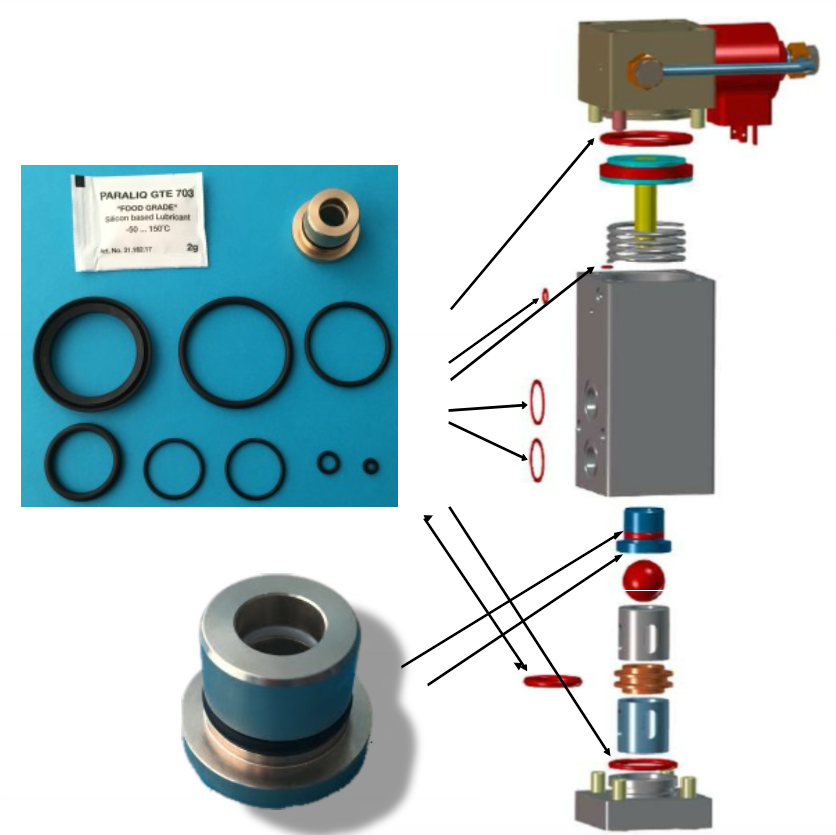

1. Description: Repair bag composed of Bush, orings and grease for the original 2628 (Preblow, Blow, Rec) and 2629 (Exhaust) valves. Original quality brass for the bush.
2. Composition
Silicon based lubrifiant
- Piston & Spool
- O-ring
3. Advantages:
- Brass bush of original quality
- 7 O’rings
- 1 scrapper
1. Description: Piston for maintenance on the original 2628 (Preblow, Blow, Rec) and 2629 (Exhaust) valves. Original quality brass for the piston
2. Composition
- 1 Piston

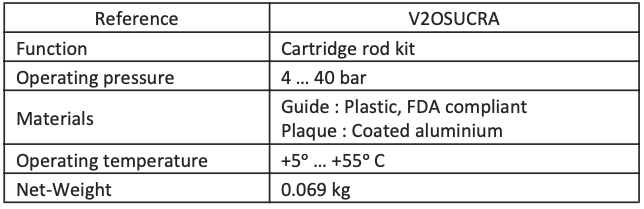

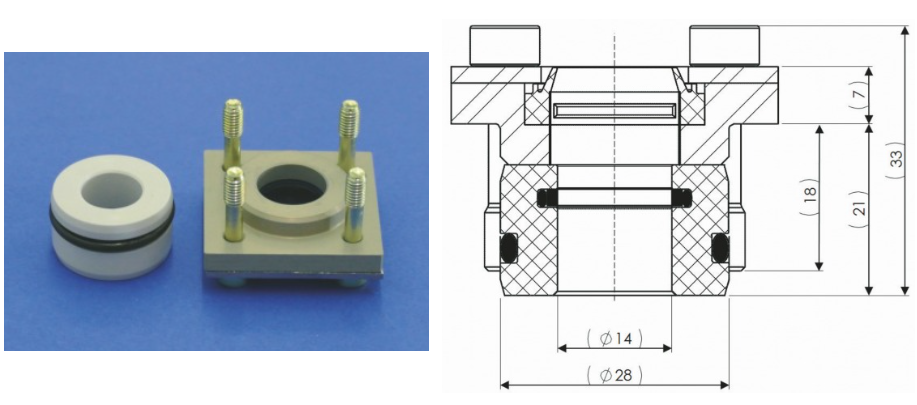

1. Description: Cartridge rod kit for original sidel valve. One-to-one replacement.
2. Included
- Screws
- Guide
- Plate
3. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
4. Technical Detail:

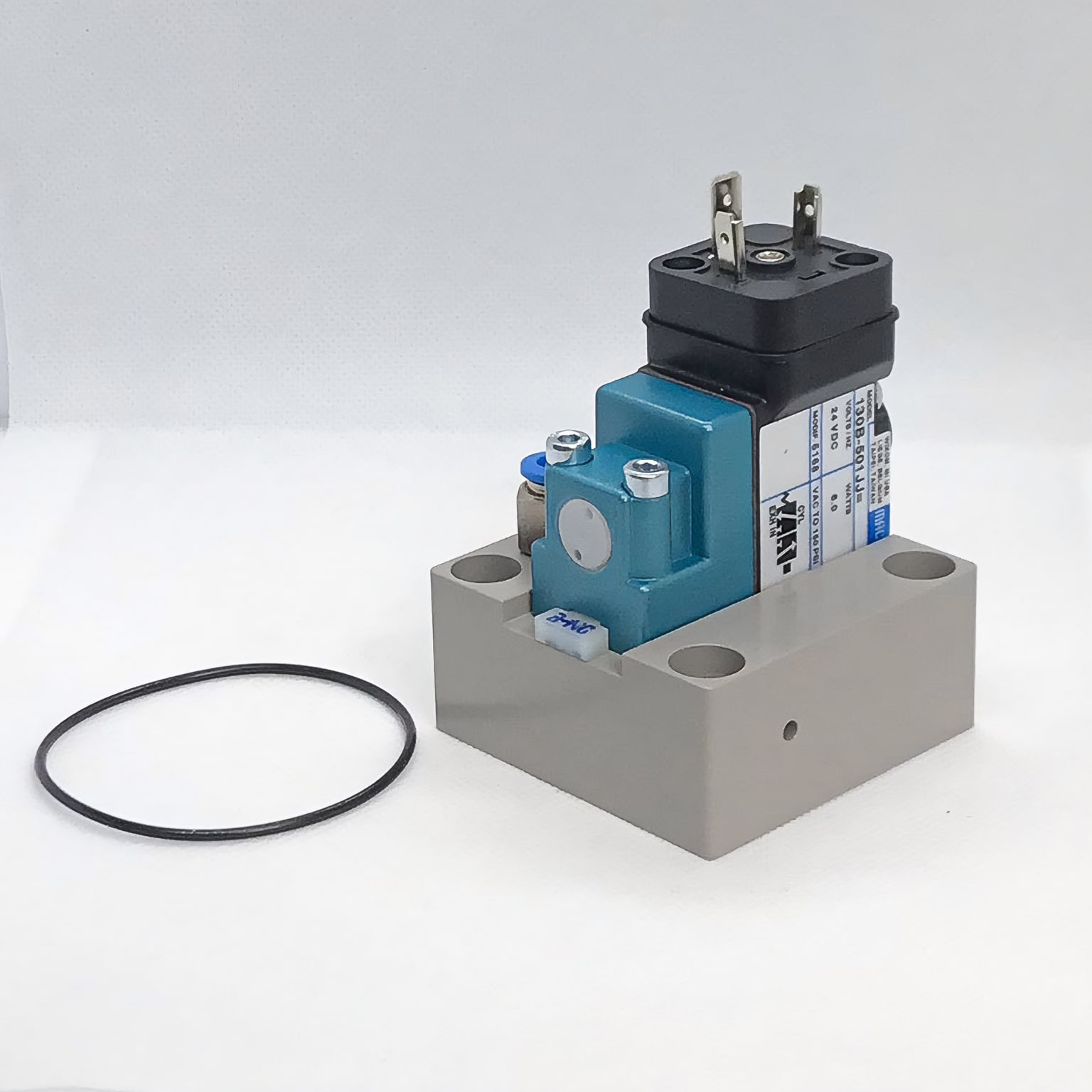

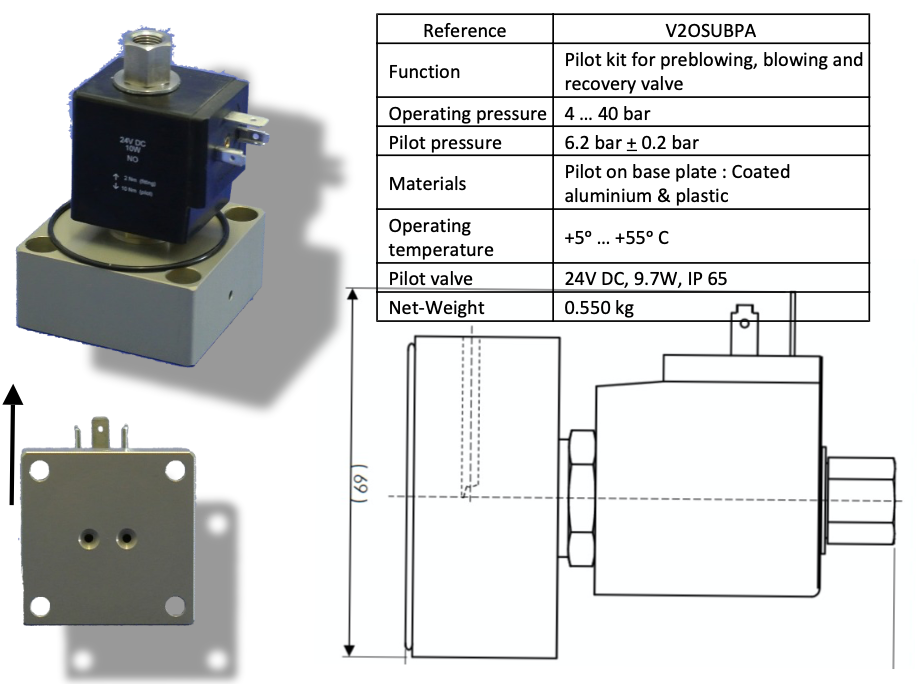

1. Description: Pilot kit for preblowing, blowing and recovery valve . Replace original part no 00000141767. One-to-one replacement.
2. Included
- Pilot mounted on base plate
- O-ring
3. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
1. Description: Pilot kit for preblowing, blowing and recovery valve . Replace original part no. 00000141768. One-to-one replacement.
2. Included
- Pilot mounted on base plate
3. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.

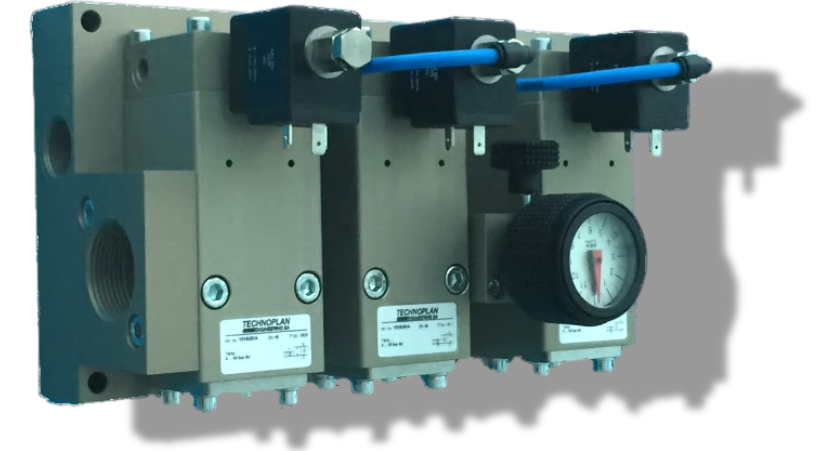

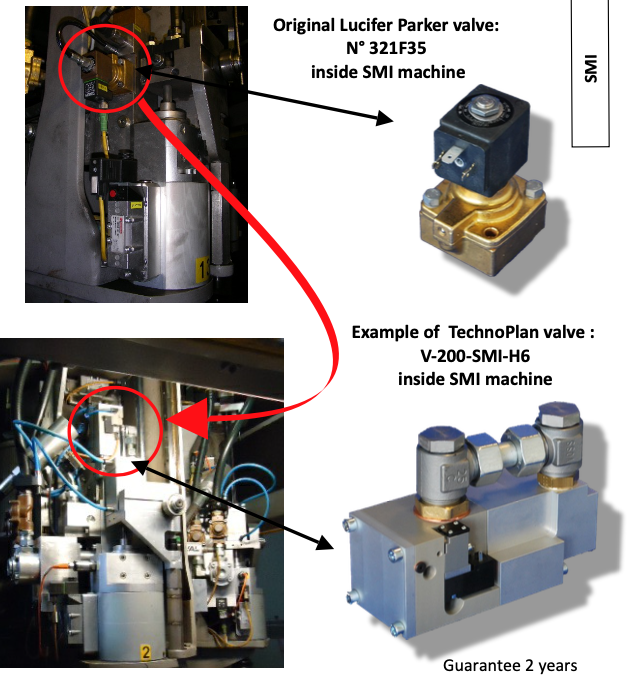

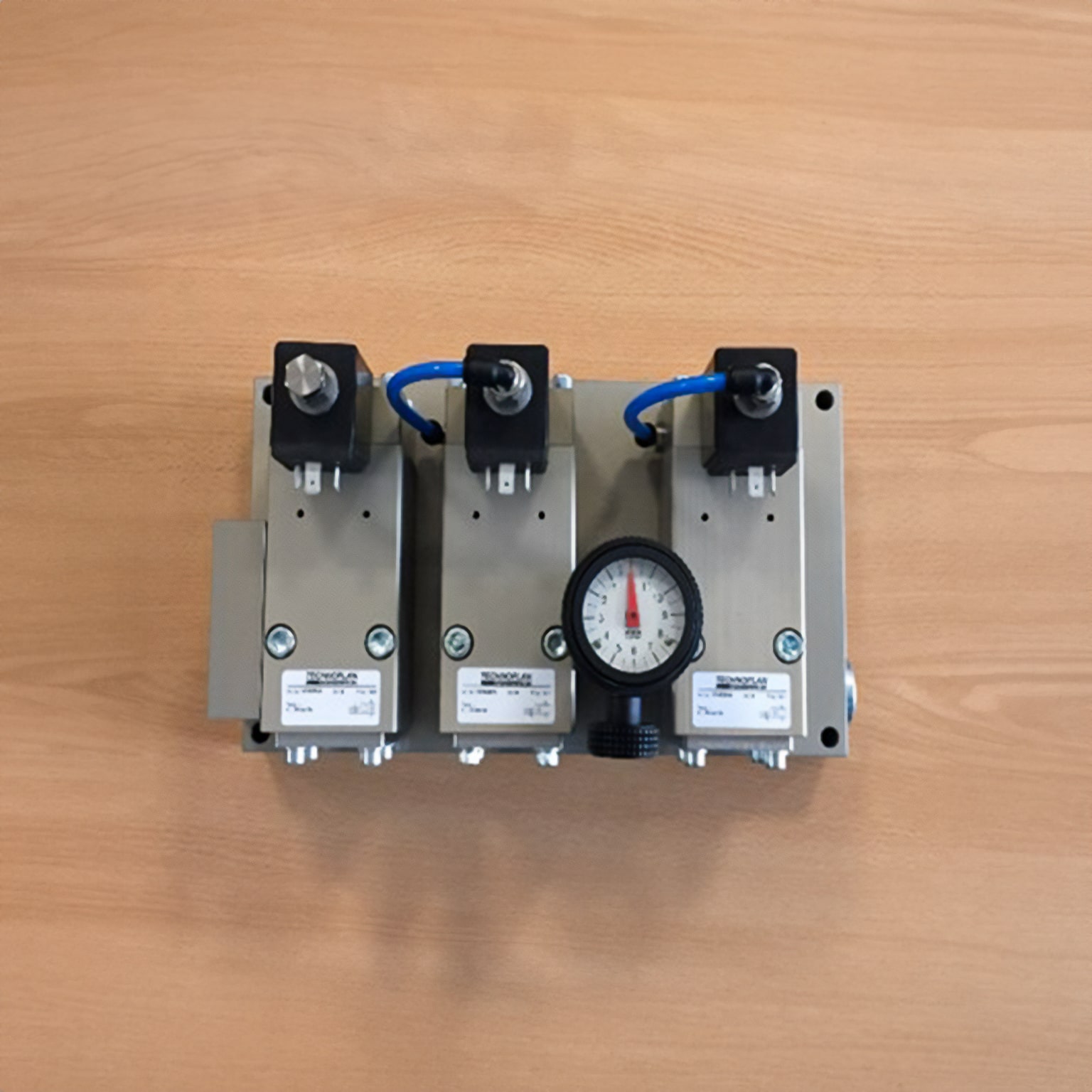

1. Description: Valve complete with base-plate, 3 fittings and pilot NO, for blow/ preblow function. Replacement Parker Lucifer part n°321F35.
2. Included
- Base plate
- 3 fittings
- No (Normally open) pilot
3. Advantages:
- Easy replacement
- Swiss quality
- Original Techoplan Engineering spare parts.
Over 2,000 blowers running with our solutions in the world !

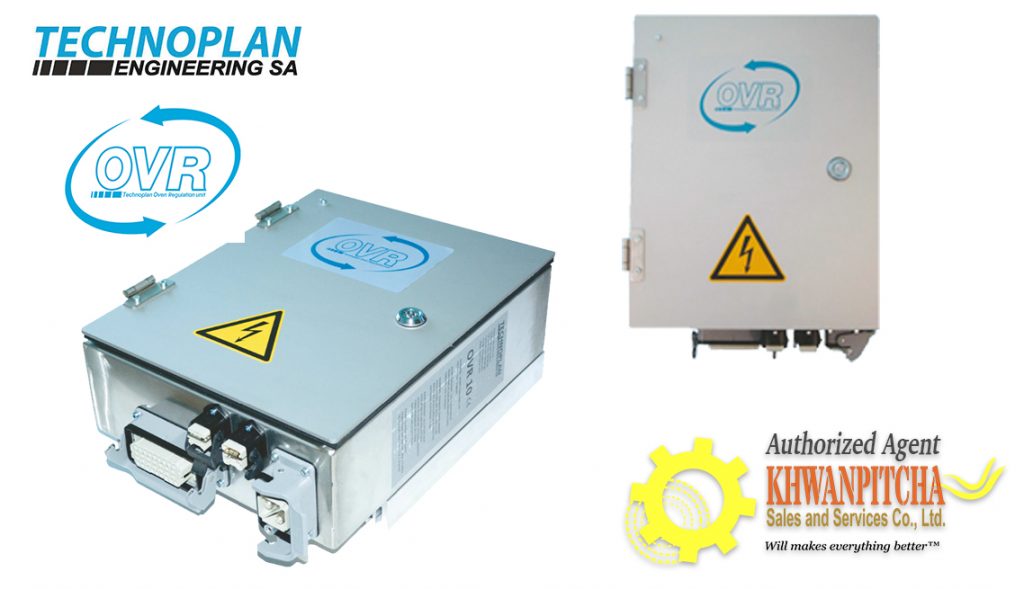

OVR10 : Reliable replacement for Olicorp IRS and PWR
Registered as Olicorp by Profibus. : Univeral PLC >> Noneed for software upgrade
2 Years Warranty
Enhanced protection against short- circuits

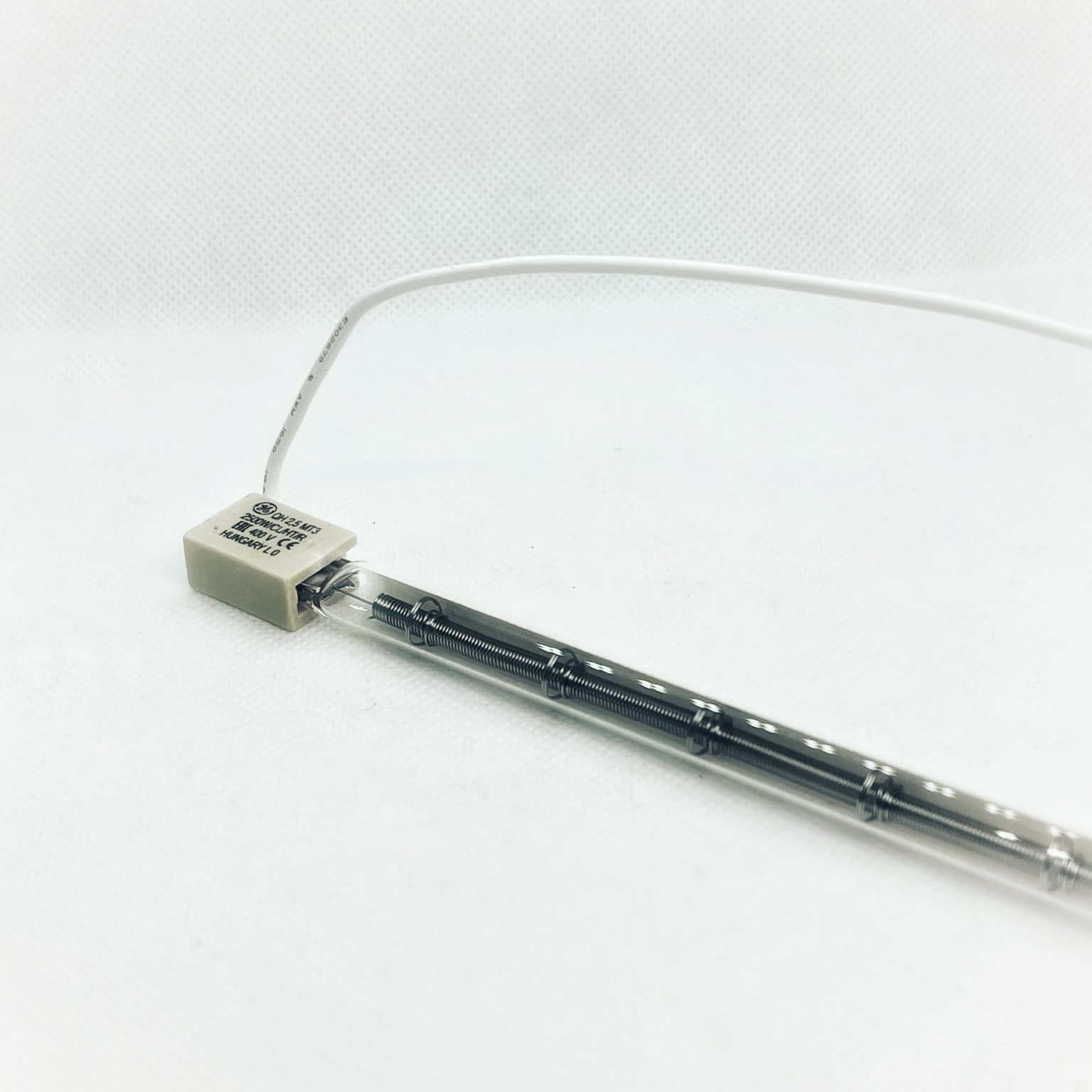

20% – 25% Saving electricity on the lamps.

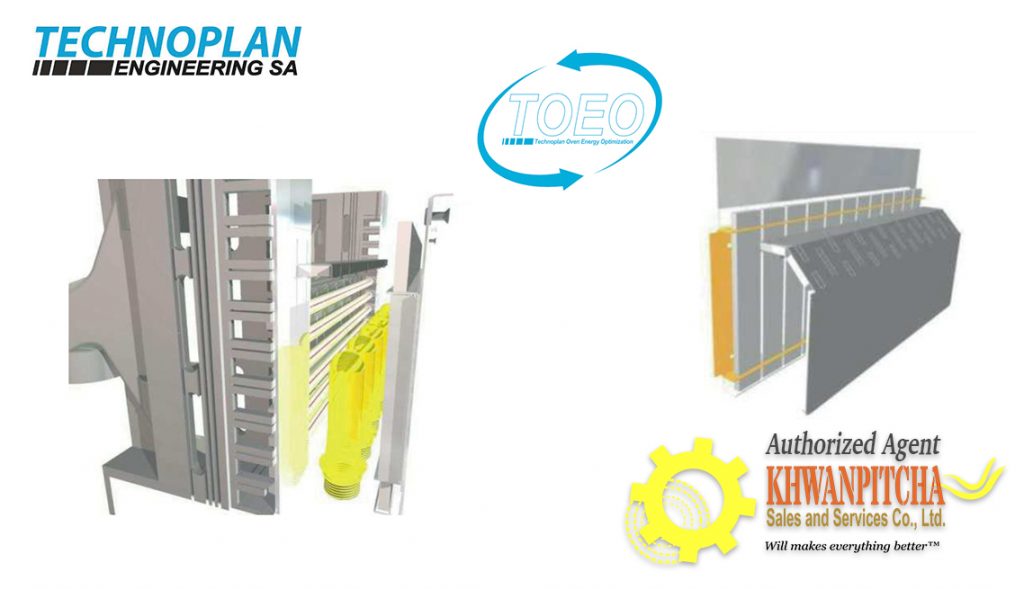

Combined improvement are brought to :
- Ceramic Reflectors
- Shield design and ventilation
Resulting in significant decrease of energy consumption.
Shield Design and ventilation
The shields are designed to improve the preform ventilation and achieve the right balance of air flow in the oven.

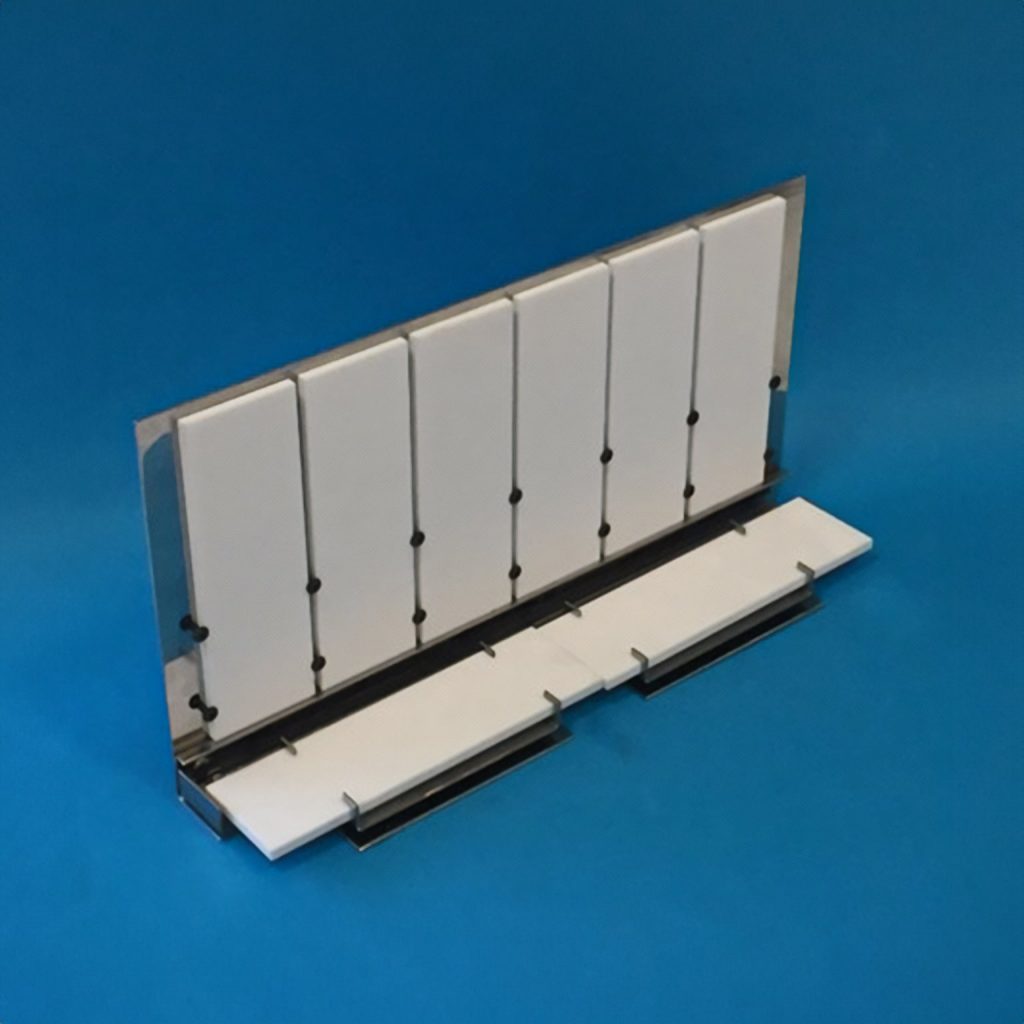

Ceramic Reflectors
Using high performance ceramic material, with treated surfaces, the Infra-Red light reflection is enhanced, allowing the optimisation of the performs heating
- A decrease on oven power consumption by minimum 17% up to 35%.
- Significant financial saving due the the reduced electricity consumption of the oven.
- Easier profiling and better process windows: better heated -> easier to blow
- Better maintenance cost:
- No maintenace costs on ceramics
- The reduction of lamps’ intensity expands significantly their life-time
- Lamps of the shutted-down oven can be recovered.
- Quick return on investment(<18 months)
Same bottle production rate and quality. Rapidly installed without any major modification to the oven(only the process is modified). Based on a proven and reliable technology.

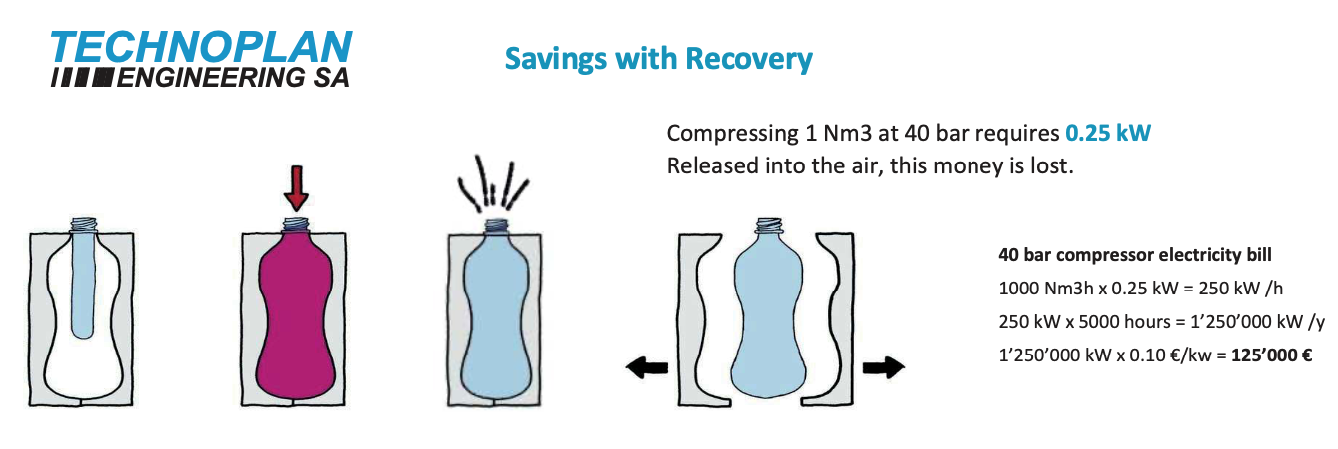

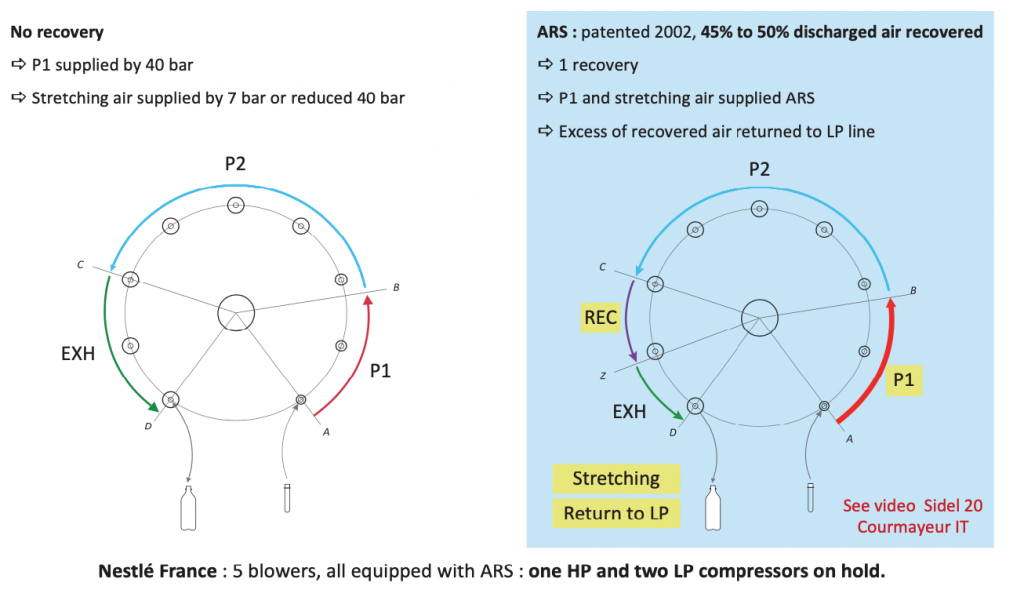

Saving with Recovery
Compressing 1 Nm3 at 40 bar requires 0.25kW, Released into the air, this money is lost. 40 bar compressor electricity billed.
1000 Nm3h x0.25 kW = 250 kW /h
250 kW x 5000 hours = 1,250,000 kW/y
1,250,000 kW x 0.10€/kw = 125,000 €

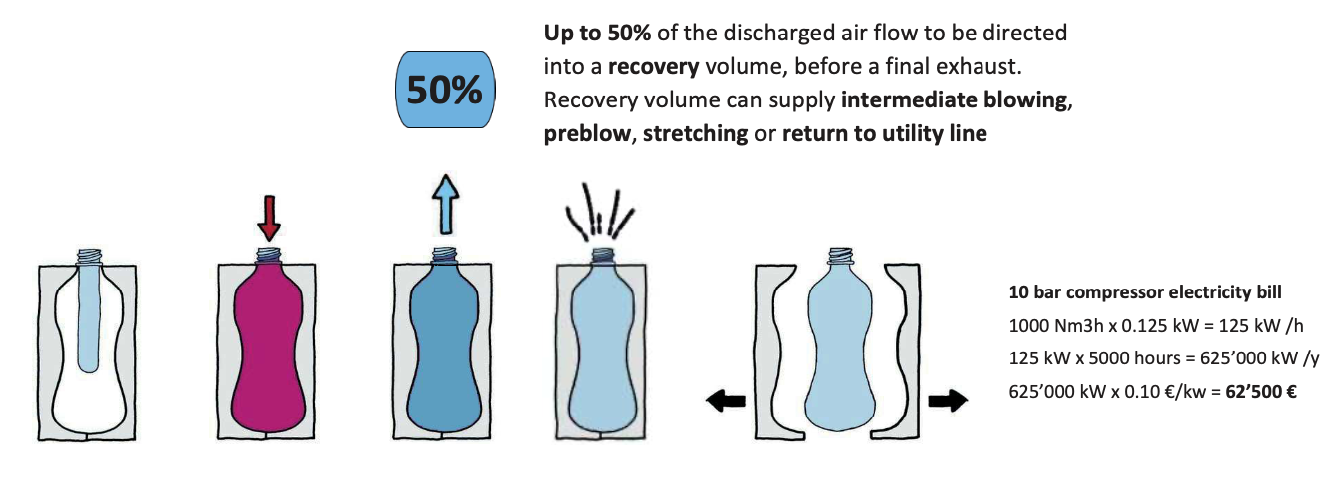

Saving with Recovery
Up to 50% of the discharged air flow to be directed into a recovery volume, before a final exhaust. Recovery volume can supply intermediate blowing, preblow, stretching or return to utility line.
